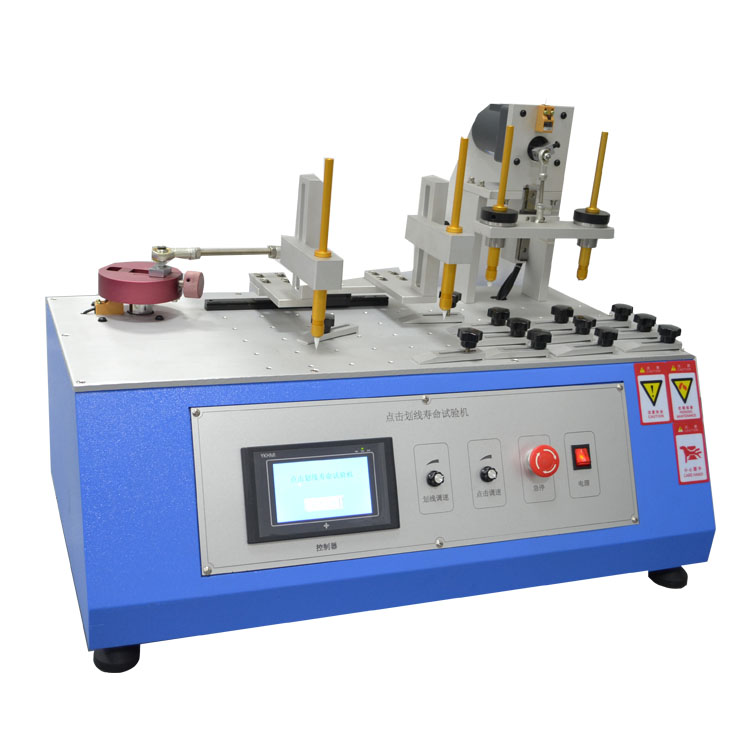

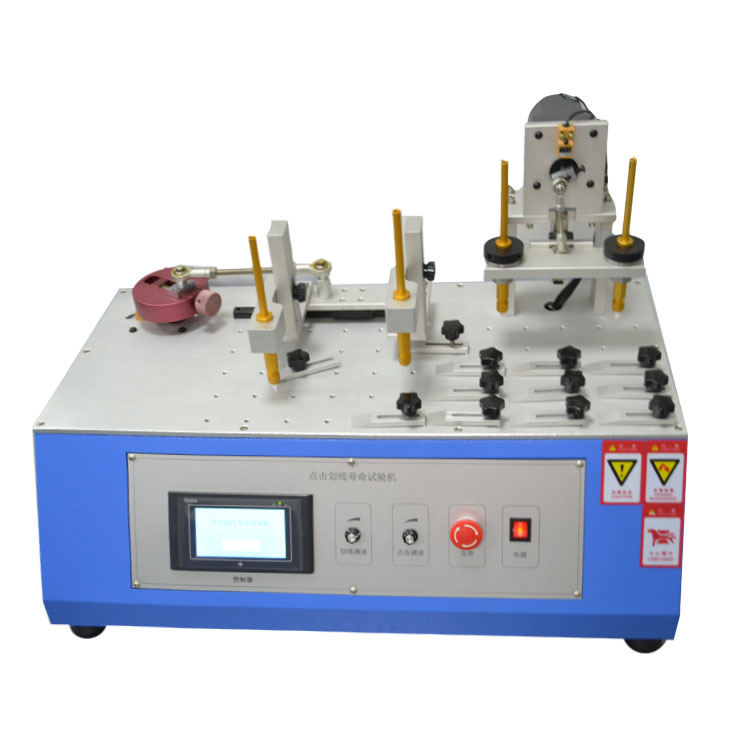

The mobile phone click scribing tester is used to test the point and write life of the touch screen. It uses a mechanical structure to drive the weights to generate a standard constant pressure to test the point and write life of the product simulation. It can also use the pencil of Zhonghua HB to test the hardness of the outer shell of the product. The test items include glue hardness test, surface paint hardness test, and paint adhesion test. The machine is equipped with double head pressure, adjustable speed, adjustable stroke, and adjustable stop number< br />
Main technical parameters of mobile phone click scribing tester< br />
Test station: click and scribe 2

Workbench size: 750mm× 350mm

Travel range: click 10mm, draw line 0-60mm,

Test power: AC speed regulating motor

Test head: Teflon or Zhonghua pencil with standard hardness of HB

Motion mode: adjustable speed motor

Test speed range: 0.25-2s/time

Two scoring rods

Click 2 bars

Four sets of weights: 10g 20g 50g 100g 200g5 00g

Preset measurement times Automatic shutdown: 0-99999999 times
